Microwave Motion Switch

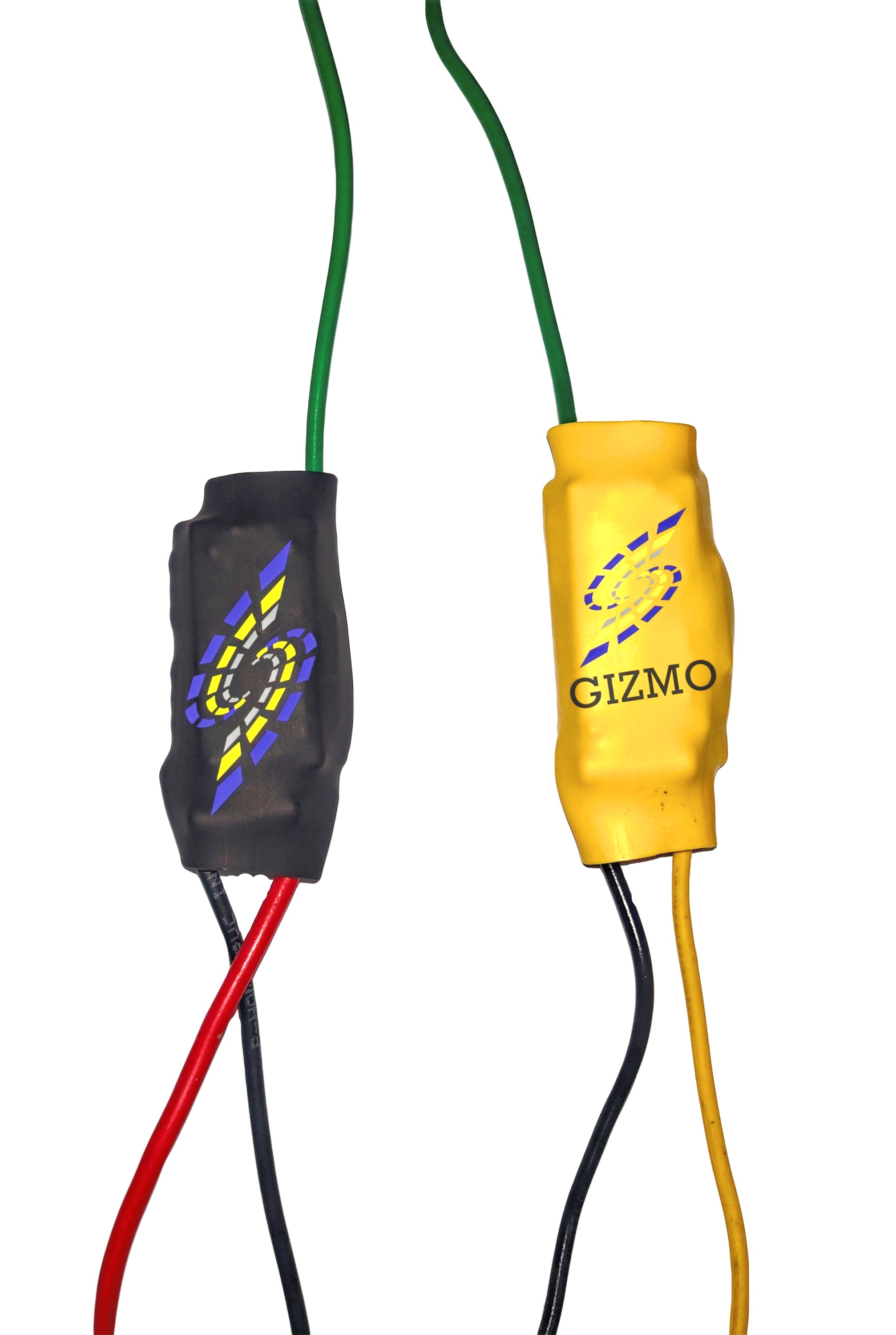

GIZMO Microwave Motion Switch

GIZMO Smart motion switch uses microwave motion sensing technology to detect the motion of human body to trigger the load without even touching the switch board. When someone enters the scope of the “GIZMO Motion Switch” it triggers the Load, may be light or any electrical load. When people leave the detection range switch turns off automatically after an interval of time. It has Light control to further automate the load as per day/night to save electricity by not turning load on when it’s not needed.

Feature:

• Compact size and light weight, easy to install and use, Without any alteration .

• No Need of line of sight for Motion detection (Hidden).

• Can Detect through False ceiling, POP, Glass, Plastic, Wood, Switch board, etc.

• High power compatibility up to 700W Load

• Affordable retrofit design to suit the need without changing current setup.

• Electricity saving by 50-70% by turning the load off when not needed.

• Adjust the light soft and stable, no flickering. Works with LED lights

• 180° wide sensing angle, 3-6 meters long sensing distance. (Wide range)

• Delay-time to turn off the load (4s to 10mins) pre-defined

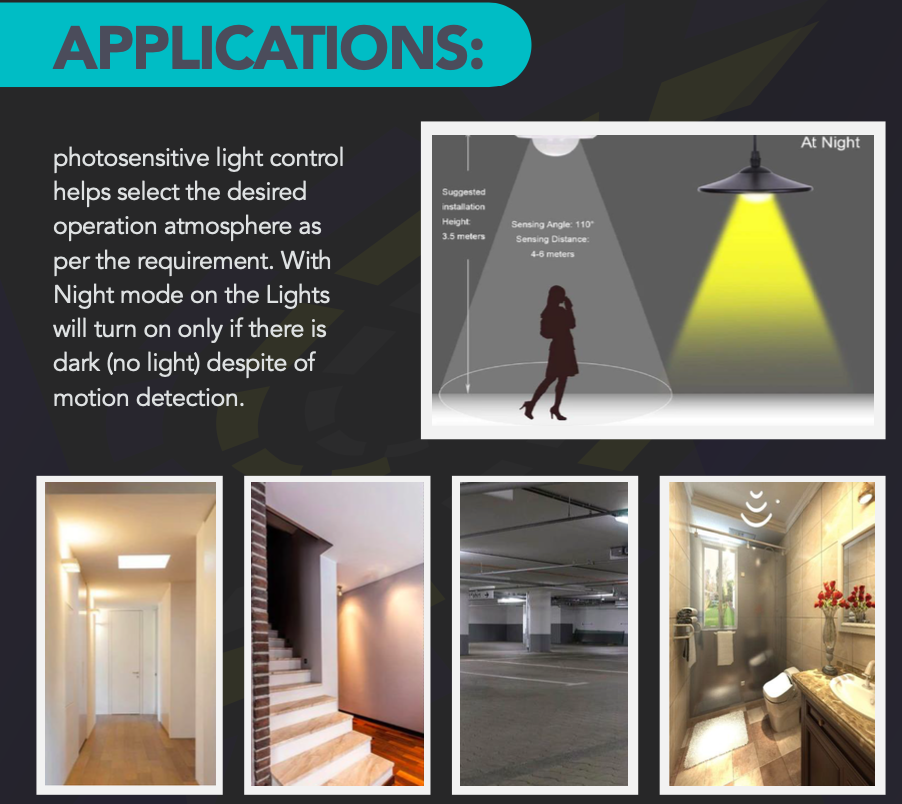

• Photosensitive light control (Day Night mode if required)

• Be ideal for wide range of Loads for example: ceiling light, cabinet light, street light, strip light, pendant light, filament light, night lamp, exhaust fan, regular fan, Security alarm speaker etc.

Specification:

• Voltage:AC85-265V

• Sensor distance:4-7M

• Sensor angle:180°

• Dimension: 18*38mm

• Power supply: AC 110~250v 50~60Hz

• Load power: Up to 500W

• Sensor distance: 4~7m

• Weight: Approx. 55g

• Colour: Yellow/white/black

• Installation Height: 3-7m

• photosensitive light control

• Shockproof plastic enclosure

• Fireproof Heat-resistant casing

• Compact design for any application

• Light detector for day/night

Contents:

GIZMO Motion Switch

Connection wiring clips

User manual • LDR for light detecting (Optional)
