Inhouse product
Product Description:

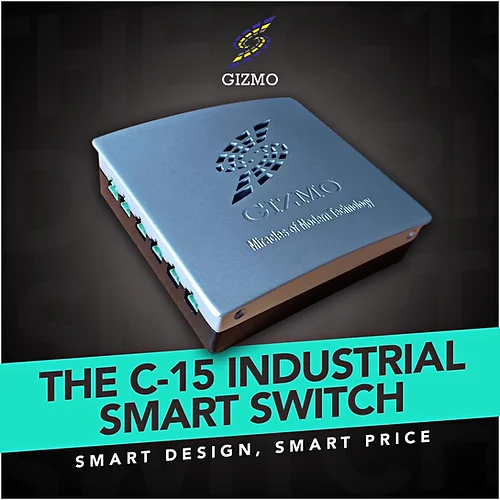

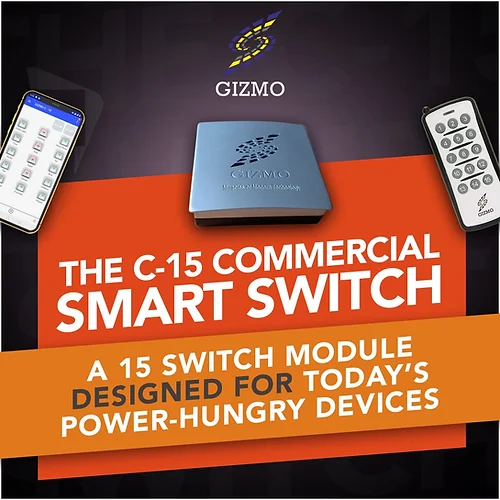

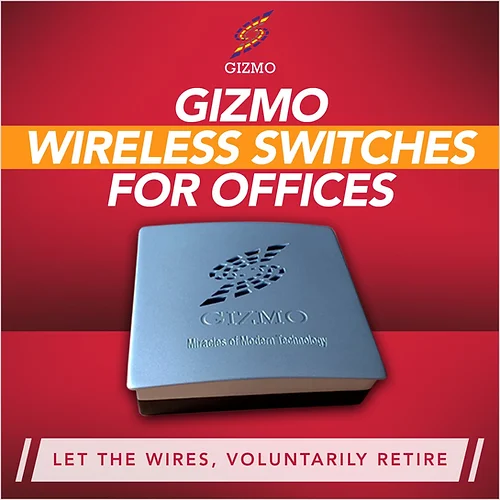

An affordable Smart Switch (IOT enabled) that provides user with access to all commercial appliances from anywhere across the globe using an Android Application and locally with 15-key Remote. It's specially designed to control variety of commercial/domestic loads of different standards. GIZMO C-15 is capable of 2.3KV per node i.e. 35KV overall load bearing capacity.
SPECIFICATION:
Operating voltage = 5v - 12v %3D
Operating current = 1A
Output load: 5V 15Amp to 230V 12Amp
Operating Frequency = 50 Hz Operating temperature= 0 °C to 80 °C
Wi-Fi = 802.11 b/g/n (802.11n up to 150 Mbps)
Dimensions = 115WX103LX30H
Features:
DIY 15 switch Module can control 15 different load. (5V 15Amp to 230V 12Amp)
15-key remote controller to control load within 100m long range.
Worldwide access with Gizmo Android app.
12 Amp max Load per node. (5-10 lights/fan or any commercial load per node)
Learning mode to assign remote buttons for particular load.
Connector sockets for safety, to avoid direct contact to live wire.
All Off/On with single long press key using remote controller.
1 Million switching cycle per node. (Longer Life than Traditional switches)
APPLICATION:
Schools/Colleges
Offices
Manufacturing plants
Hospitals
Restaurant
Society parking
Houses/ flats
Factories
Hotels
