GIZMO G500 Motorised Sliding Gate Automation System (500Kg) description:
(18-Month Warranty)
Introducing the GIZMO G500, a cutting-edge motorised sliding gate automation system designed for seamless operation, security, and durability. Engineered to support gates up to 500kg and 6 meters in length, this system combines advanced technology with a compact, robust design, ensuring optimal performance for residential and commercial applications.

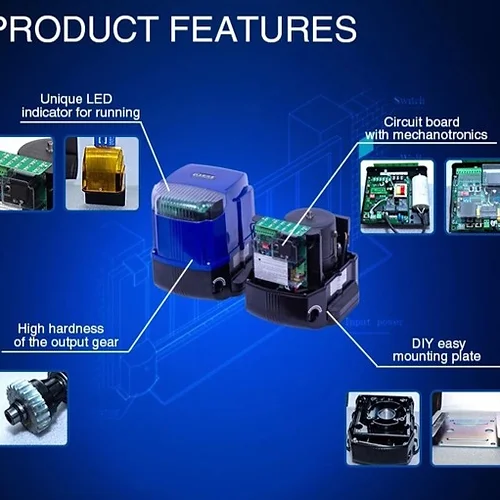

Key Features:
1. Advanced Design:
• Sleek industrial aesthetics crafted with state-of-the-art molding technology.
• Durable aluminum alloy base, offering anti-corrosion and rust-resistant properties.
2. Reliable and Safe:
• Built-in thermal protection to prevent motor overheating.
• Unique clutch mechanism for double protection and enhanced anti-theft security.
• Reverse self-locking worm gear system, ensuring the gate remains securely closed against external force.
3. Precision and Convenience:
• Magnetic double limit switch with fine-tuning for precise operation.
• Soft start and stop functionality for smooth and stable motion.
• Noise-reduction technology ensures ultra-quiet operation (<52 dB).
4. Versatile Compatibility:
• Supports integration with remote controls, access control systems, Bluetooth, RFID, NFC, and fingerprint scanners.
• Compatible with various smart home systems for enhanced connectivity.
5. Obstacle Detection:
• Efficient anti-clamping technology reverses the gate upon detecting obstructions, ensuring safety for people and objects.
6. Enhanced Control:
• LED fault display for easy maintenance and diagnostics.
• Adjustable motor force, resistance, and torque for tailored performance.
• Auto-close feature with an adjustable timer (1–120 seconds).
Specifications:
Parameter Details
Power Supply 220V ± 10% / 24V DC
Nominal Thrust 3500N
Engine RPM 3800 RPM
Gate Weight Support 500 kg
Max Gate Length 6 meters
Speed 27.10 cm/s
Absorbed Power 144W
Operating Current 5.5A
Working Temperature -25°C to +75°C
Humidity Tolerance <60% (No dew formation)
Remote Distance >30m (local) / App-enabled (global)

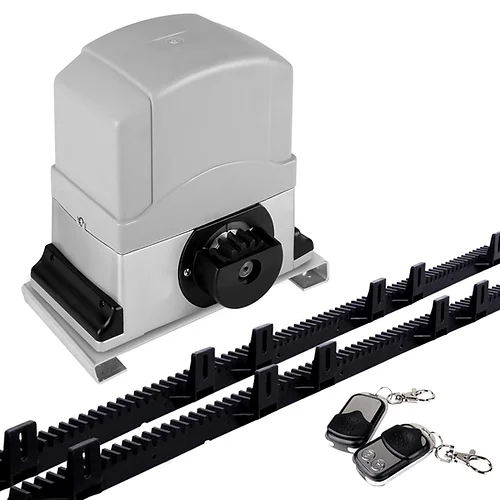

Package Includes:
1. High-performance 500kg AC motor.
2. Digital control system with soft start/stop technology.
3. Two remote controls with advanced jump code technology for enhanced security.
4. Built-in magnetic limit switch.
5. Mounting brackets and release keys.
6. Galvanised gear rack (ordered separately based on gate size).
7. Photo cell (Obstacle safety) : 999+ GST (Extra)
8: Mobile App Automation kit = 4999 + GST (Extra)
Additional Features:
• Auto Locking: Automatically secures the gate after closure.
• Fail-Safe System: Ensures continuous operation during power disruptions.
• Smart Access Options: Includes RFID, fingerprint, keypad, and remote unlocking.
• Mobile App Integration: Control your gate from anywhere in the world.
• Extended Remote Range: Optional long-range remotes (30–100m).
The GIZMO G500 is engineered for long-lasting performance, safety, and user convenience. Whether for residential or commercial applications, this system delivers unparalleled reliability and functionality.
Upgrade your gate automation today with the GIZMO G500 – where innovation meets practicality.
