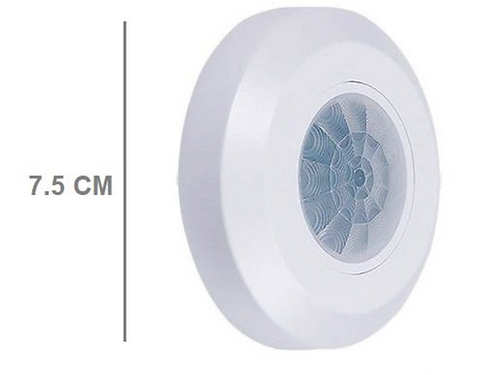

PIR Motion Sensor Switch - Wall Mount
(12 Months Warranty)
Using infrared pyro electric sensor, Integrated circuit chip and advanced production technology ensure Stable and reliable performance. When someone enters the scope of the PIR it triggers the switch, may be light or any load. When people leave the detection range switch turns off automatically. It has Time & Light control selection to further automate the load.

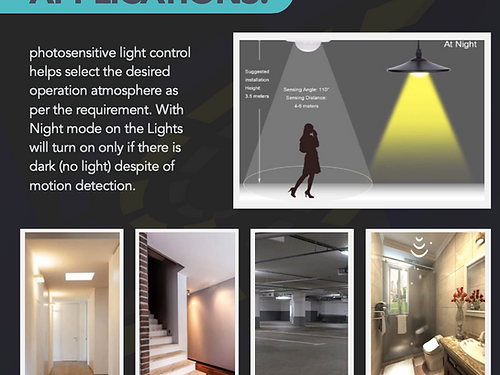

LUX switch is to adjust day or night work.
- When adjusted to the sun position, the sensor works all day;
- When it is transferred to the moon position, the sensor does not work during the day and automatically enters the working state at night.
TIME switch is to adjust the sensor delay time
The delay time refers to the time when the sensor leaves the sensing area after the sensor senses the person and the sensor delays the time.
Feature:
- Mini size and light weight, easy to install and use, flexible operation.
- Affordable retrofit design to suit the need without changing current setup.
- Electricity saving by 50-70% by turning the load off when not needed.
- Adjust the light soft and stable, no flickering. Works with LED lights
- 170° wide sensing angle, 4-6 meters long sensing distance.
- Adjustable delay-time (10s - 15min).
- Photosensitive light control selections (≤2Lux to 2000Lux).

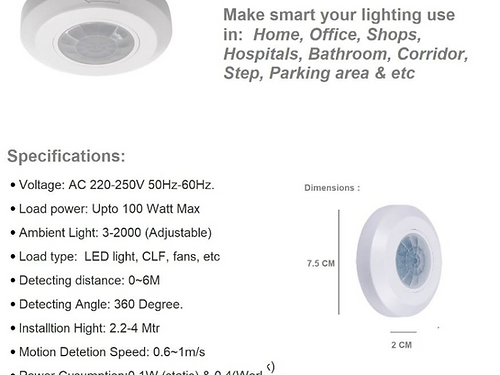

Specification:
- Electric Resistance: 4 A
- Maximum Current: 5 A
- Maximum Voltage: 250 V
- Operating Voltage: Ac 220-250v 50hz-60hz (Regular Power Supply),
- Operating Temperature: -20℃~+50℃,
- Load Power: Up to 1200 Watts
- Load Type: Incandescent Lamp, Led Light and Energy Saving Lamp, Fans, Etc.
- Detecting Distance: 0 To 7 Meters (Related to The Installation),
- Detecting Angle: 360 Degree Cone (Related to The Installation),
- Time Delay: 10 Seconds -7 Minutes (Adjustable)
- Switch Weight: 125 g
- photosensitive light control
- Shockproof plastic enclosure
APPLICATION:
- Schools/Colleges
- Offices
- Manufacturing plants
- Hospitals
- Restaurant
- Society parking
- Houses/ flats
- Factories
- Hotels
- Contents:
- GIZMO Motion Switch
- Ceiling Mount
- User manual
