Description:-

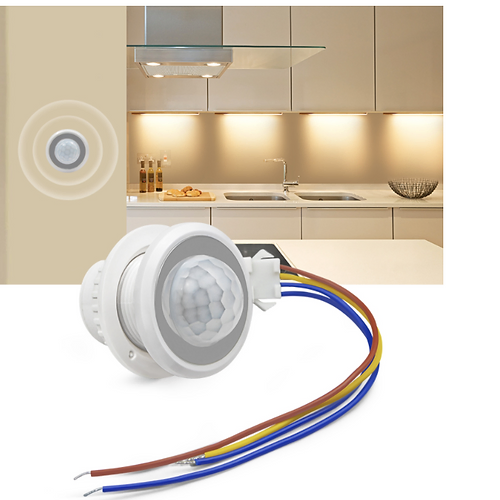

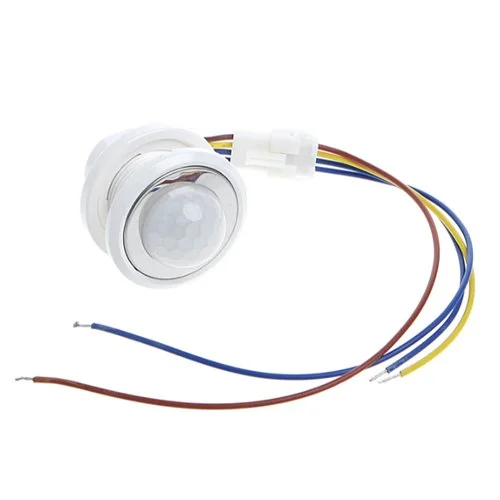

Using infrared pyro electric sensor, Integrated circuit chip and advanced production technology ensure Stable and reliable performance. When someone enters the scope of the PIR it triggers the switch, may be light or any load. When people leave the detection range switch turns off automatically. It has Time & Light control selection to further automate the load.
LUX switch is to adjust day or night work.
- When adjusted to the sun position, the sensor works all day;
- When it is transferred to the moon position, the sensor does not work during the day and automatically enters the working state at night
TIME switch is to adjust the sensor delay time
The delay time refers to the time when the sensor leaves the sensing area after the sensor senses the person and the sensor delays the time
Features:
- Mini size and light weight, easy to install and use, flexible operation.
- Affordable retrofit design to suit the need without changing current setup.
- Electricity saving by 50-70% by turning the load off when not needed.
- Adjust the light soft and stable, no flickering. Works with LED lights
- 110° wide sensing angle, 4-6 meters long sensing distance.
- 3 levels adjustable delay-time (15s/ 45s/ 5mins).
- 3 levels good photosensitive light control selections (≤2Lux/ 25Lux/ 2000Lux).
- Be ideal for different lighting fixture, like ceiling light, cabinet light, pendant light etc
Specifications:
- Voltage:AC85-265V
- Sensor distance:4-8M
- Sensor angle:120°
- Dimensions: 40*45mm
- Power supply: AC 110~250v 50~60Hz
- Load power: 5W~200W
- Sensor distance: 5~8m
- Weight: Approx. 35g
- Colour: White
- Installation Height: 3-5m
- photosensitive light control
- Shockproof plastic enclosure

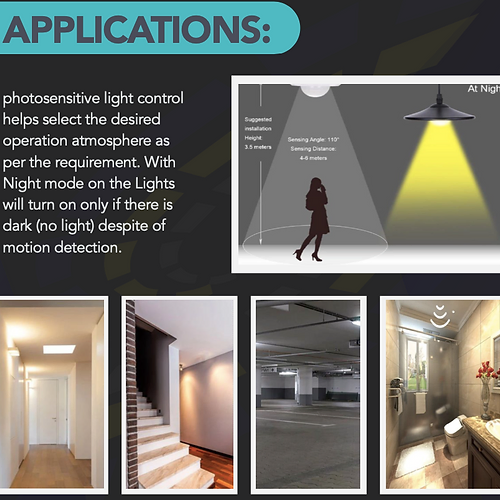

APPLICATIONS:
- Schools/Colleges
- Offices
- Manufacturing plants
- Hospitals
- Restaurant
- Society parking
- Houses/ flats
- Factories
- Hotels
Contents:
- GIZMO Motion Switch
- Connection wiring clips
- User manual
Application:
Technology Based Automatic Sensor Switch, Which Can Be Widely Used In Corridor, Bathroom, Basement, Storage, Garage, Hotels, Motels, Fuel Stations Show Rooms, station, railway office And Other Places Of Automatic Lighting.
