PIR Outdoor Motion Sensor Switch (IP65 Weatherproof)

PIR Outdoor Motion Sensor Switch ( IP65 Weatherproof) descrption:

(12 Months Warranty)

Using infrared pyro electric sensor, Integrated circuit chip and advanced production technology ensure Stable and reliable performance. When someone enters the scope of the PIR it triggers the switch, may be light or any load. When people leave the detection range switch turns off automatically. It has Time & Light control selection to further automate the load.

Description:

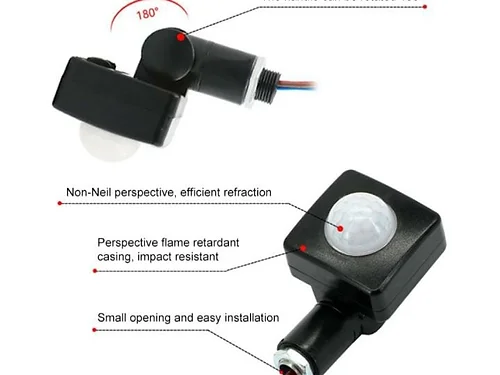

The 10mm open version of the interface is made of iron, and the 12mm open version of the interface is made of plastic. Sensing distance / light intensity / power-on time adjustable. Small size and high sensitivity. 160 degree monitoring range.

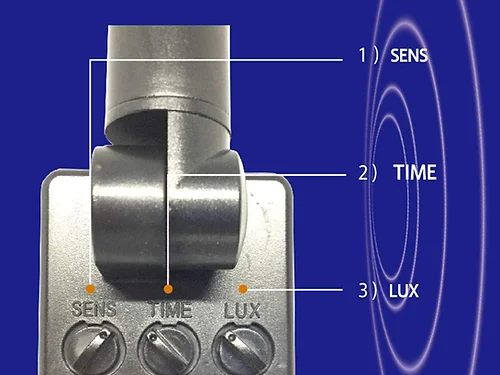

         LUX switch is to adjust day or night work.

• When adjusted to the sun position, the sensor works all day;
• When it is transferred to the moon position, the sensor does not work during the day and automatically enters the working state at night.

TIME switch is to adjust the sensor delay time (20±10sec~8+1min)

The delay time refers to the time when the sensor leaves the sensing area after the sensor senses the person and the sensor delays the time.

The SENS switch is the sensitivity of the adjustment sensor.

Feature:

• Mini size and light weight, easy to install and use, flexible operation.
• Affordable retrofit design to suit the need without changing current setup.
• Electricity saving by 50-70% by turning the load off when not needed.
• Adjust the light soft and stable, no flickering. Works with LED lights
• 170° wide sensing angle, 4-6 meters long sensing distance.
• Adjustable delay-time (10s - 15min).
• Photosensitive light control selections (≤2Lux to 2000Lux).

Specifications:

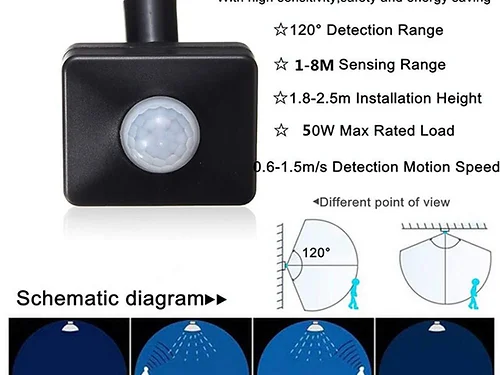

• Detection range: 160 degrees
• Detection distance: 6-8M (25 degrees Celsius)
• Ambient lighting: 2-2000 LUX (adjustable)
• Working humidity: less than 93% RH
• Material: ABS
• Installation method: open type (opening 10mm/12mm)
• Working voltage: AC85-265V
• Delay time: 8 seconds - 6 minutes (adjustable)
• Working temperature: -10 degrees Celsius - 40 degrees Celsius
• Installation height: 1.8m-2.5m
• Dimensions: 42*40*20mm

Package Included:

• 1* sensor switch
• 1* instruction manual
