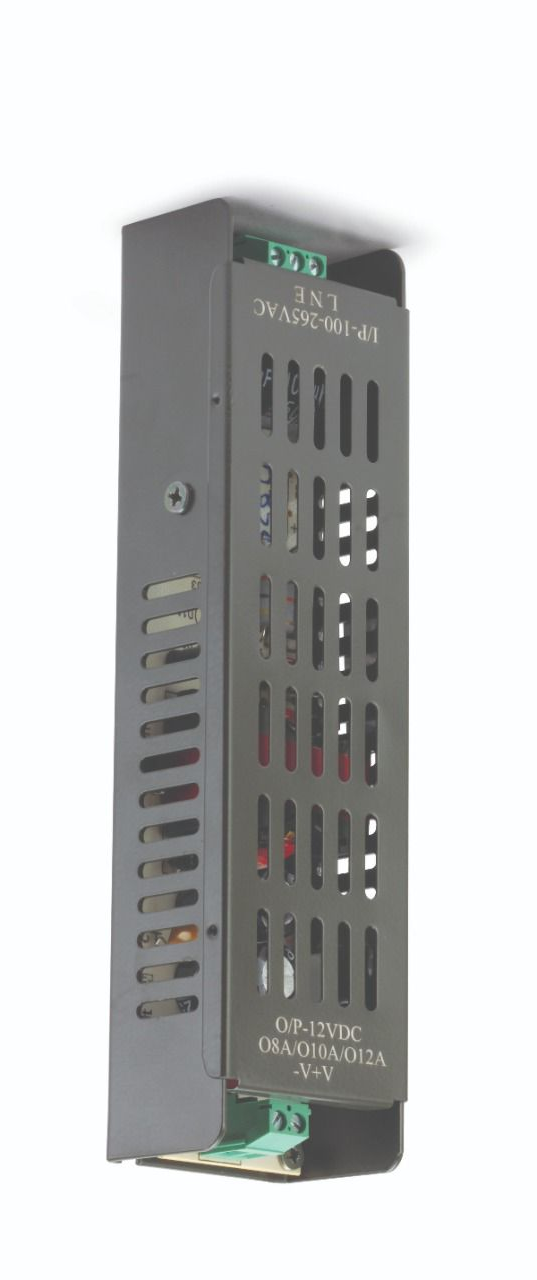

SPECIFICATION :
INPUT VOLTAGE : 100V-265VAC
OPERATED FREQUENCY : 50Hz
OUTPUT VOLTAGE : 12VDC <+/-5% (REGULATED)
OUTPUT CURRENT : 12AMP
OUTPUT POWER : 144W
CV. REGULATION : LINE & LOAD <+/-5%
EFFICIENCY : 80-85%
DIMENSION (MM) : H-33, W-48, L-178
ENCLOSURE : ALUMINIUM / MS POWDER COATED
OPERATING TEMPERATURE : -10° C TO 50°C
AMBIENT TEMPERATURE (TA) : 65° C TO 75° C
CASE TEMPERATURE (TC) : 55° C TO 60° C
PROTECTION :
INPUT : FAST BLOW FUSE & NTC OF APPROPRIATE RATING TO BE PROVIDED FOR PREVENTION OF FIRE HAZARD
HIGH VOLTAGE CUT OFF: 285VAC-295VAC AND UNIT WILL SHUT DOWN & AUTO RECOVER WITH 15-20 VOLT HYSTERESIS
SHORT CIRCUIT : HICUP / LATCH MODE
THERMAL: SHUTDOWN & AUTO RECOVER
OVER LOAD : AUTO RECOVER
INGRESS PROTECTION : IP 20
SURG IMMUNITY : 1.5 KV TO 2 KV
ISOLATION (HI-VOLT TEST) : .N. TO DC OUTPUT 1.5 KV FOR ONE MINUTE
INDOOR USE ONLY
Applicable for Home, Office, Meeting Room, Hotel, Cabin, Shopping Mall, Show Windows, Park, Shop Hoarding. CCTV Camera, Parking Lots Etc.
TA & TC DEPENDS ON LOAD CONNECTED TO POWER SUPPLY
